Angular Google Charts - Histogram with Multiple Series

Following is an example of a Histogram Chart with multiple series.

We have already seen the configurations used to draw a chart in Google Charts Configuration Syntax chapter. Now, let us see an example of a Histogram Chart with multiple series.

Configurations

We've used Histogram value to show histogram based chart.

type = ChartType.Histogram;

Example - Usage of Histogram Chart with Multiple Series

app.ts

import { Component, signal } from '@angular/core';
import { ChartType, GoogleChart } from 'angular-google-charts';

@Component({
   selector: 'app-root',
   imports: [GoogleChart],
   templateUrl: './app.html',
   styleUrl: './app.css'
})
export class App {
   protected readonly title = signal('google-charts-app');
   type = ChartType.Histogram;
   data = [
      ["1", 80, 40],["2", 55, 30],["3", 68, 34],["4", 80, 40],["5", 54, 27],
      ["6", 70, 35],["7", 85, 42],["8", 78, 40],["9", 70, 35],["10", 58, 28],
      ["11", 90, 45],["12", 65, 33],["13", 88, 50],["14", 82, 41],["15", 65, 30],
      ["16", 86, 43],["17", 45, 30],["18", 62, 30],["19", 84, 42],["20", 75, 40],
      ["21", 82, 41],["22", 75, 40],["23", 58, 30],["24", 70, 35],["25", 85, 40]
   ];
   columnNames = ["Student Roll No", "height","weight"];
   options = {
      title: 'Students height, in cm',
      legend:'none'
   };
   width = 550;
   height = 400;
}

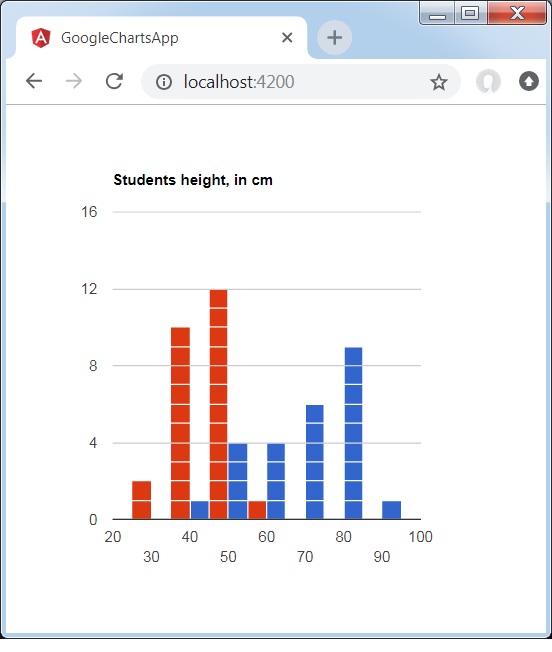

Result

Verify the result.
